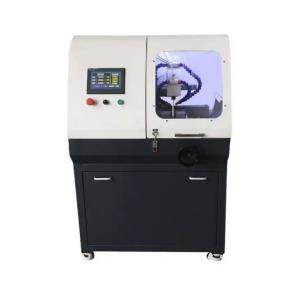

Large Intelligent Metallographic Cutting Machine Automatic ICut-300Z 3000rpm

Product Categories

Dongguan Quality Control Technology Co., Ltd.

Contact Now

Name: Large Intelligent Metallographic Cutting Machine Automatic ICut300Z 3000rpm
Brand: iqualitrol
Price: 1 USD

Brand Name : iqualitrol

Model Number : iCut-300Z

MOQ : 1 Set

Payment Terms : T/T, Western Union

Supply Ability : 10 Sets per Month

Delivery Time : 10 Working Days

Packaging Details : Plywood Box

Spindle Speed : 100-3000r/min (stepless speed regulation)

Control System : PLC control system

Cut Section : 120mm diameter

Cutting method : Vertical cutting, layered cutting, horizontal cutting

Cooling Method : Automatic (water-cooled 4-channel)

Power supply : AC380V/50Hz/3Ph/4KW

Contact Now

Large Intelligent Automatic Metallographic Cutting
Machine iCut-300Z

Technical Specification:

Model Number	iCut-300Z
Spindle speed	100-3000r/min (stepless speed regulation)
Platform X Mobile	Automatic 70mm
X-axis speed	0-100mm (stepless speed regulation)
Z-axis travel	150mm
Z-axis speed	0-200mm
Platform Y travel	Automatic 200mm
Platform Y speed	0-200mm (stepless speed regulation)
control system	PLC control system
Maximum cutting size	120mm diameter
Disk cutting size	∅300X100mm
Cutting method	Vertical cutting, layered cutting, horizontal cutting
Delivery method	Arbitrary setting of advance and retreat ratio
Effective feed distance	150+200mm
Completion tracking	LCD digital display (constantly displayed)
Cutting table size	650X300mm
Cutting blade specifications	(250-380)X(2-3)X32mm
Support platform	Split double layer mobile platform
Clamping platform surface	Stainless steel countertop
Cutting speed	1-200mm/minute
Online speed regulation	Arbitrary adjustment
Reset method	Automatic reset
Cooling system	Automatic (water-cooled 4-channel)
Water tank capacity	75L
Motor power	4KW
Power supply	380V
weight	500KG
